Sandbags
Creation Mode: Draw Line on Terrain

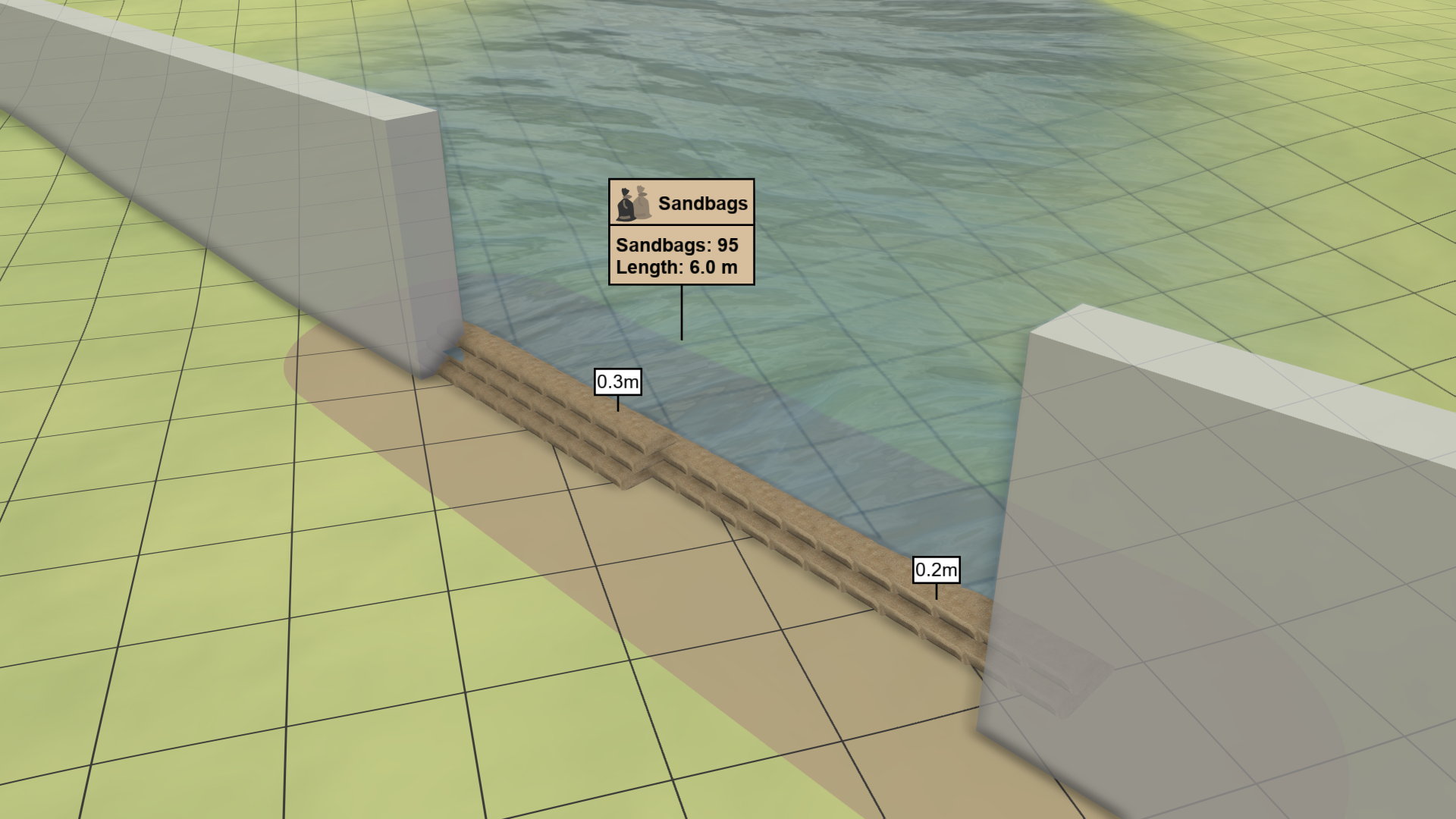

Purpose and Effect: This action represents one of six barriers designed for planning mobile protection measures. It consists of sandbags stacked in a pyramid shape. To place the barrier, draw a line on the terrain. The barrier type can be changed in the Action Settings Panel.
Barrier Limits
Maximum Height
The number of required sandbags and their stacking height are automatically determined per time step based on the water depth at the barrier. The barrier can retain water up to a depth of 1.2 meters.

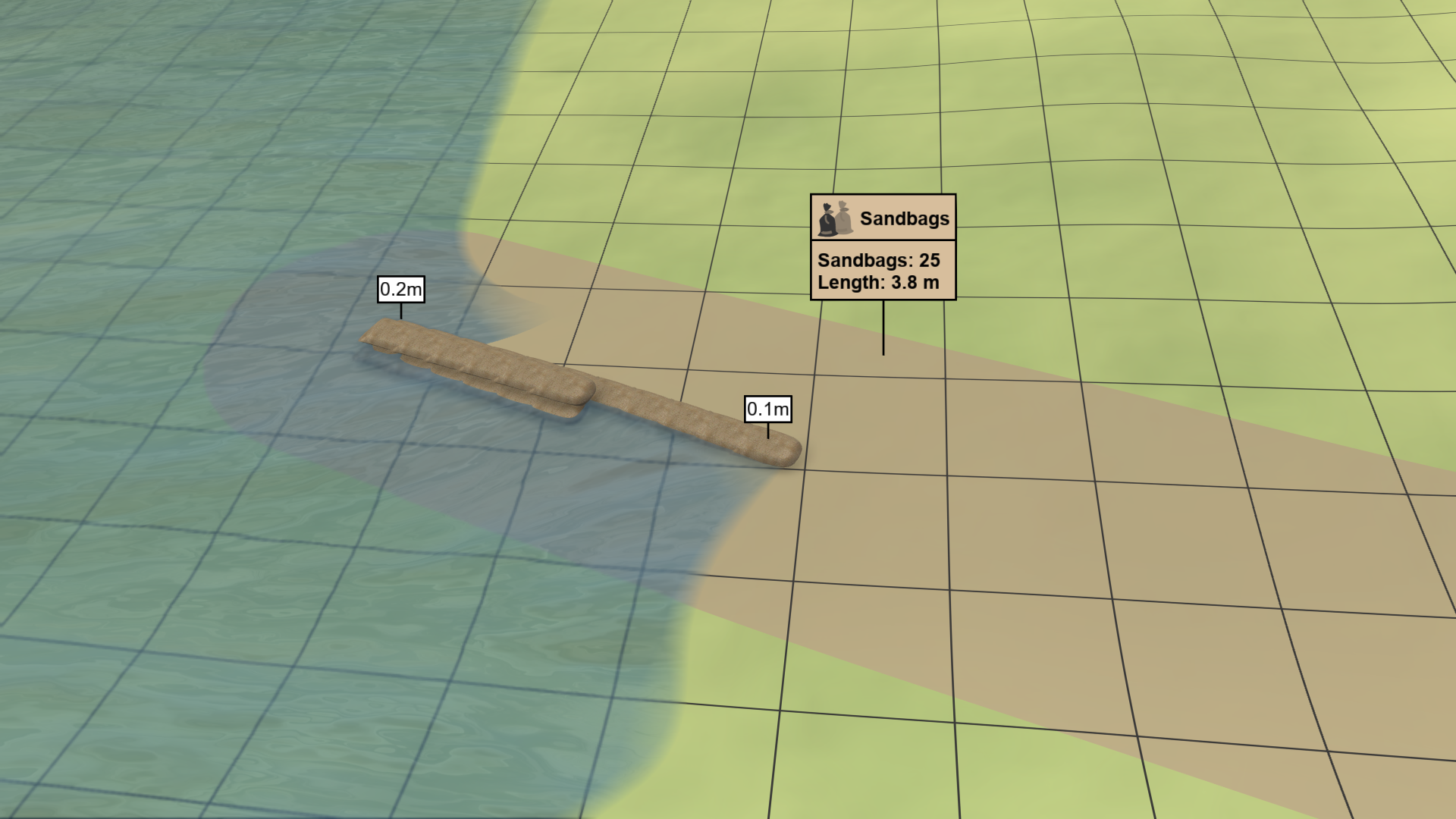

| Low water depth: Sandbags are only placed where water reaches the barrier. |  |
|---|---|

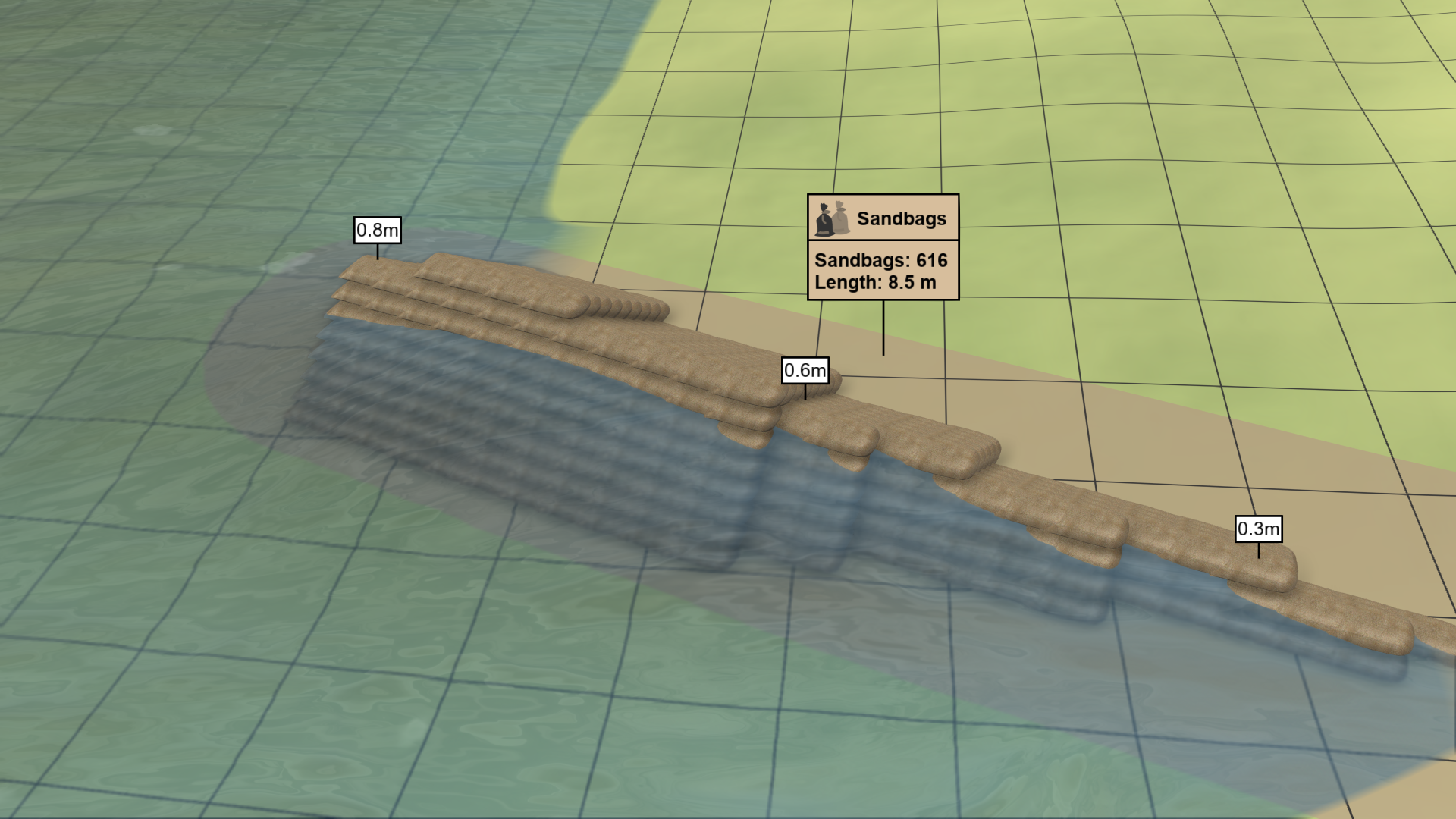

| High water depth: The barrier has to be higher and longer, requiring more sandbags to hold the water back. |  |

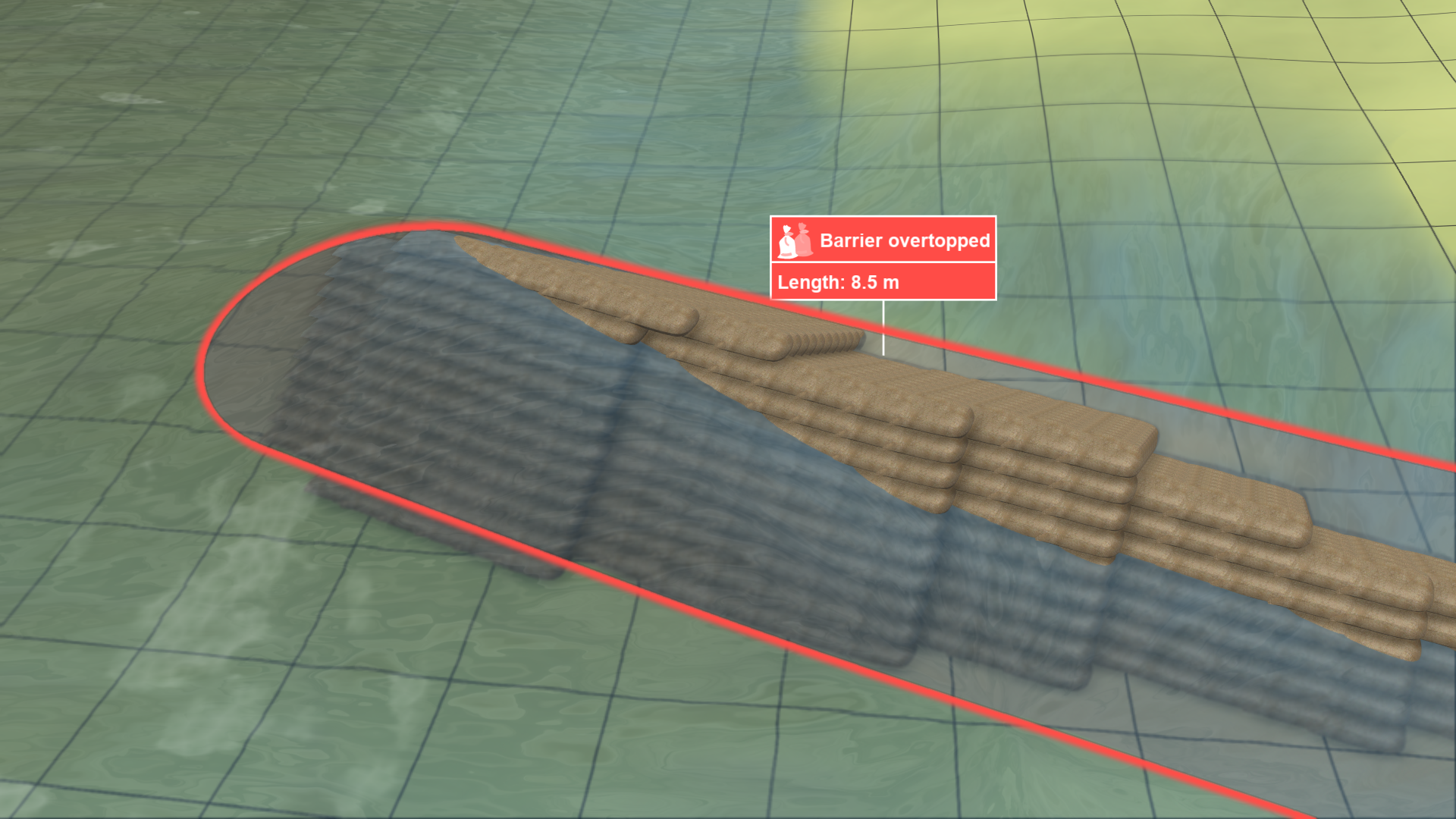

| Water depth > 1.2 m: The barrier is overtopped because the water reaches the maximum depth the barrier can hold. |  |
Maximum Slope

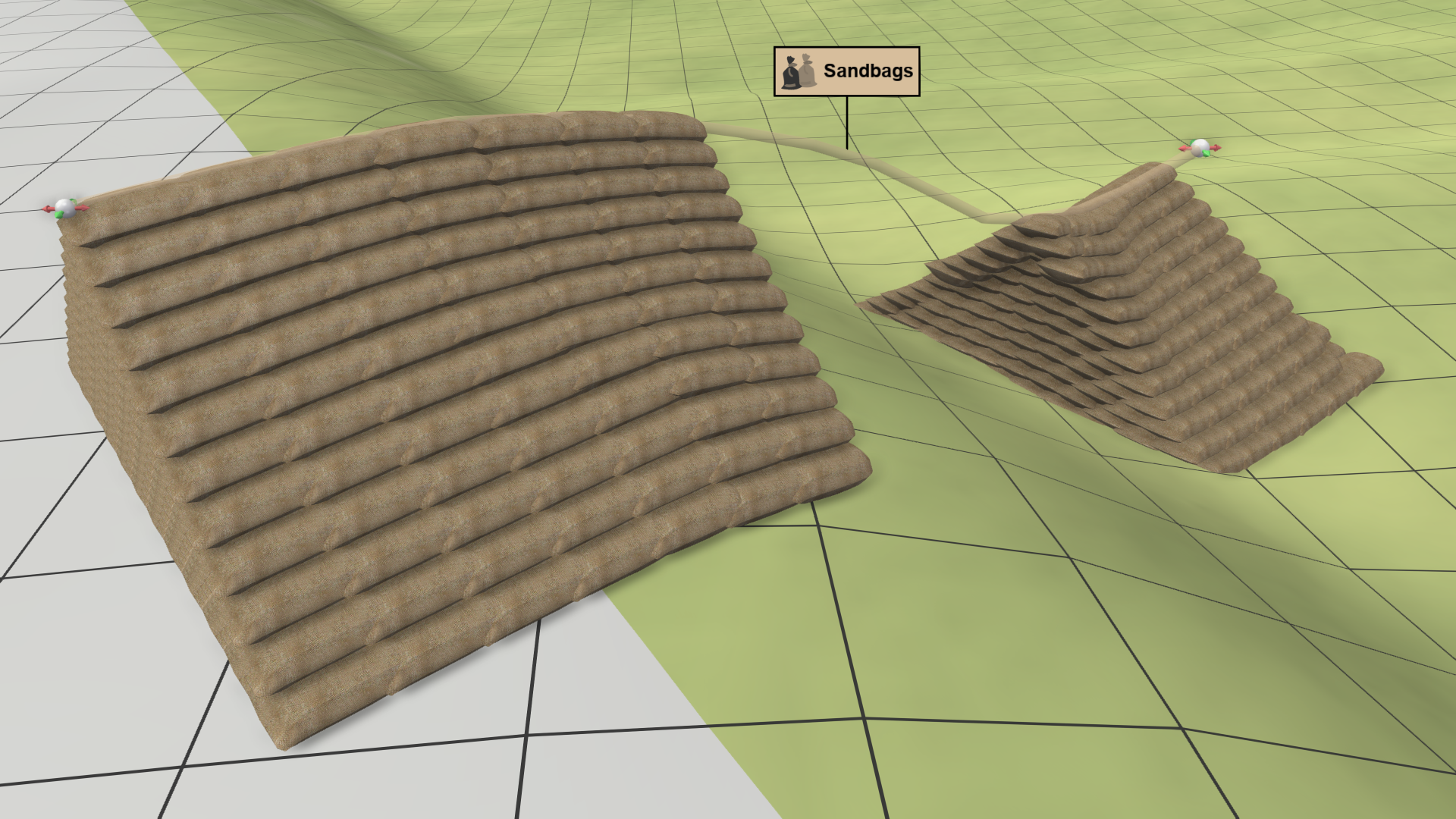

To ensure stability, sandbags are only placed along their lines where the slope of the terrain does not exceed 12°. Below is an example where the terrain slope is too steep to place the barrier.
Building Walls

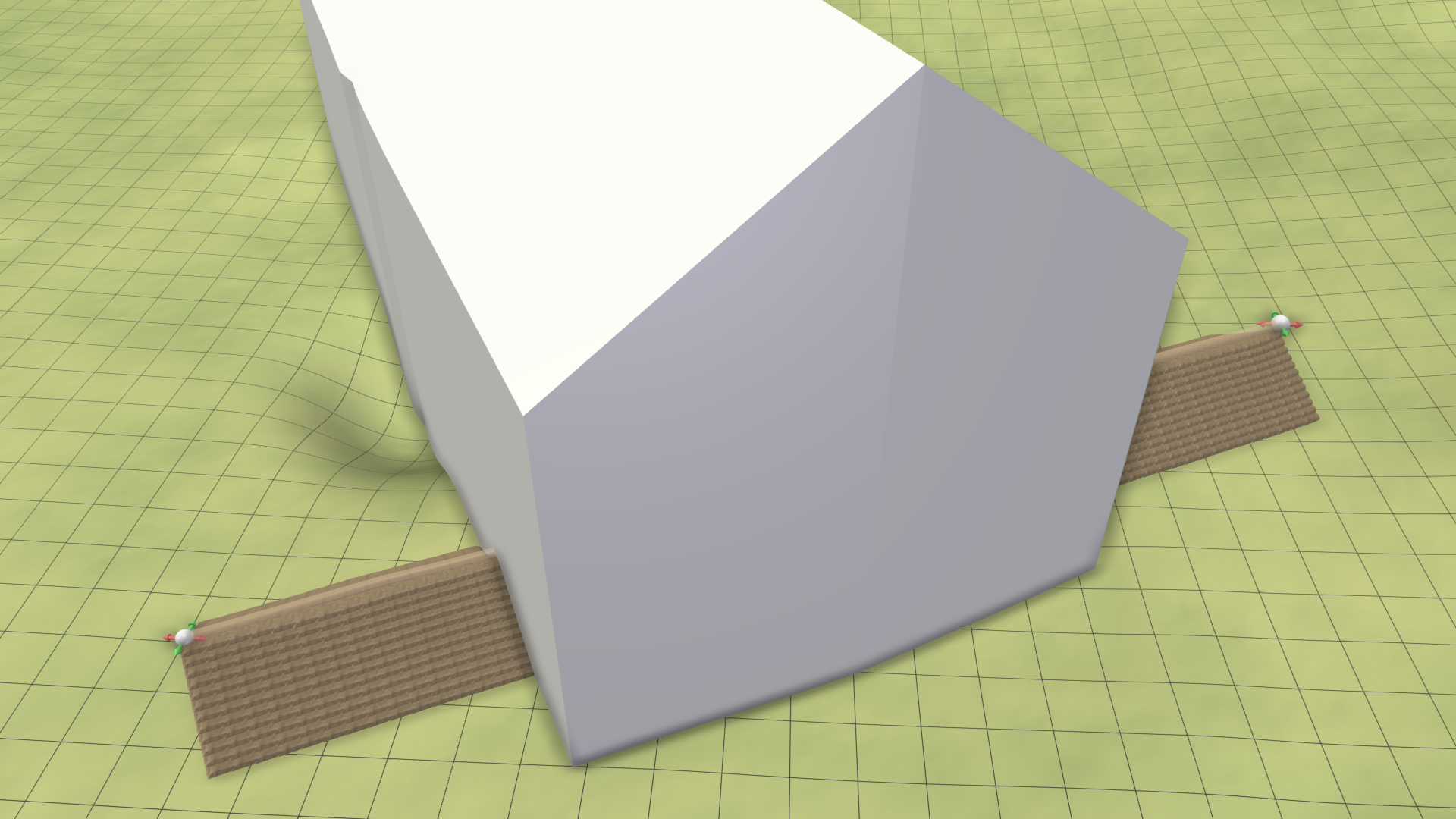

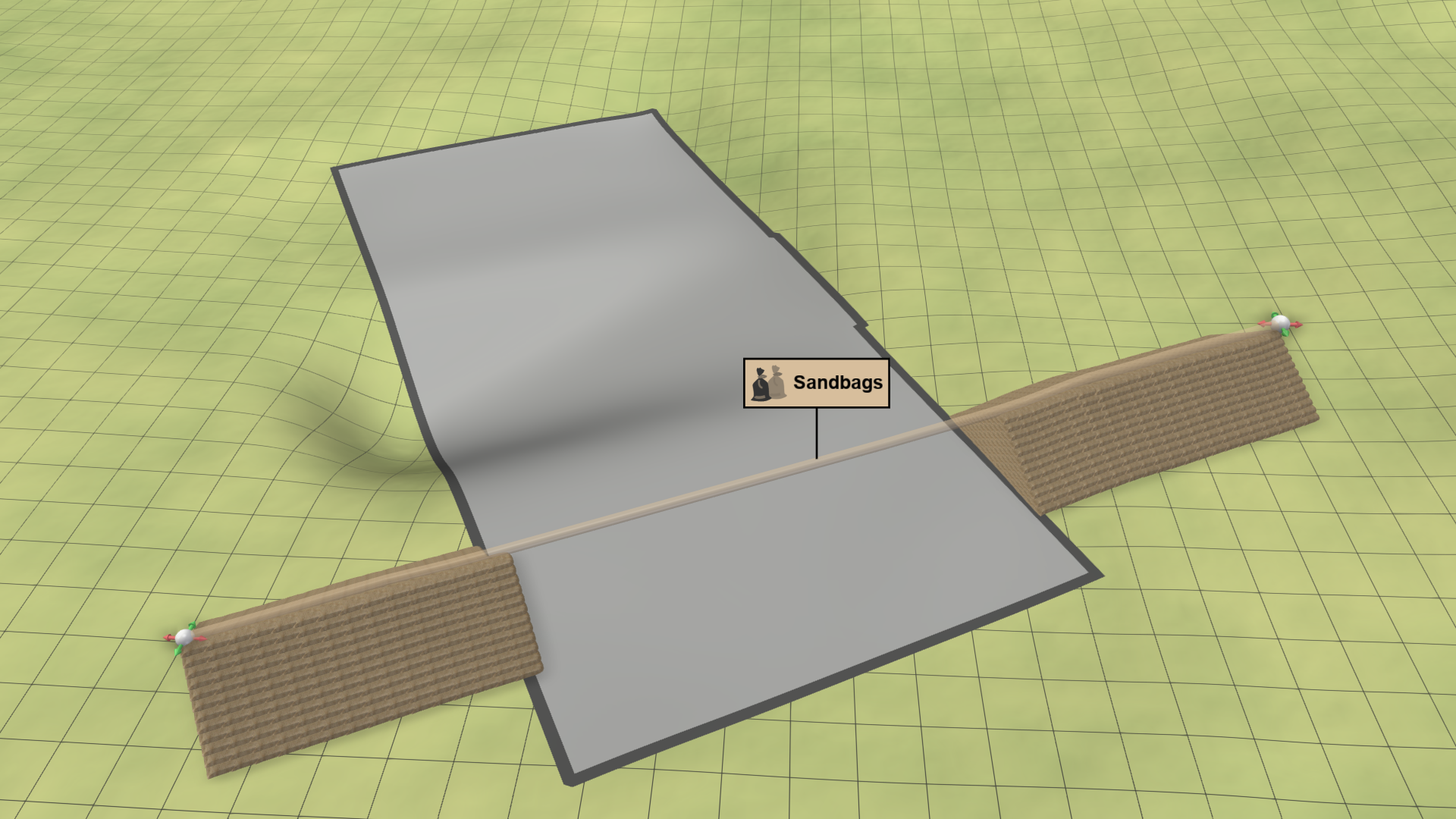

Barrier lines can be drawn through buildings and the barrier placement stops automatically at walls to prevent their placement inside buildings.
