Bioretention Swale

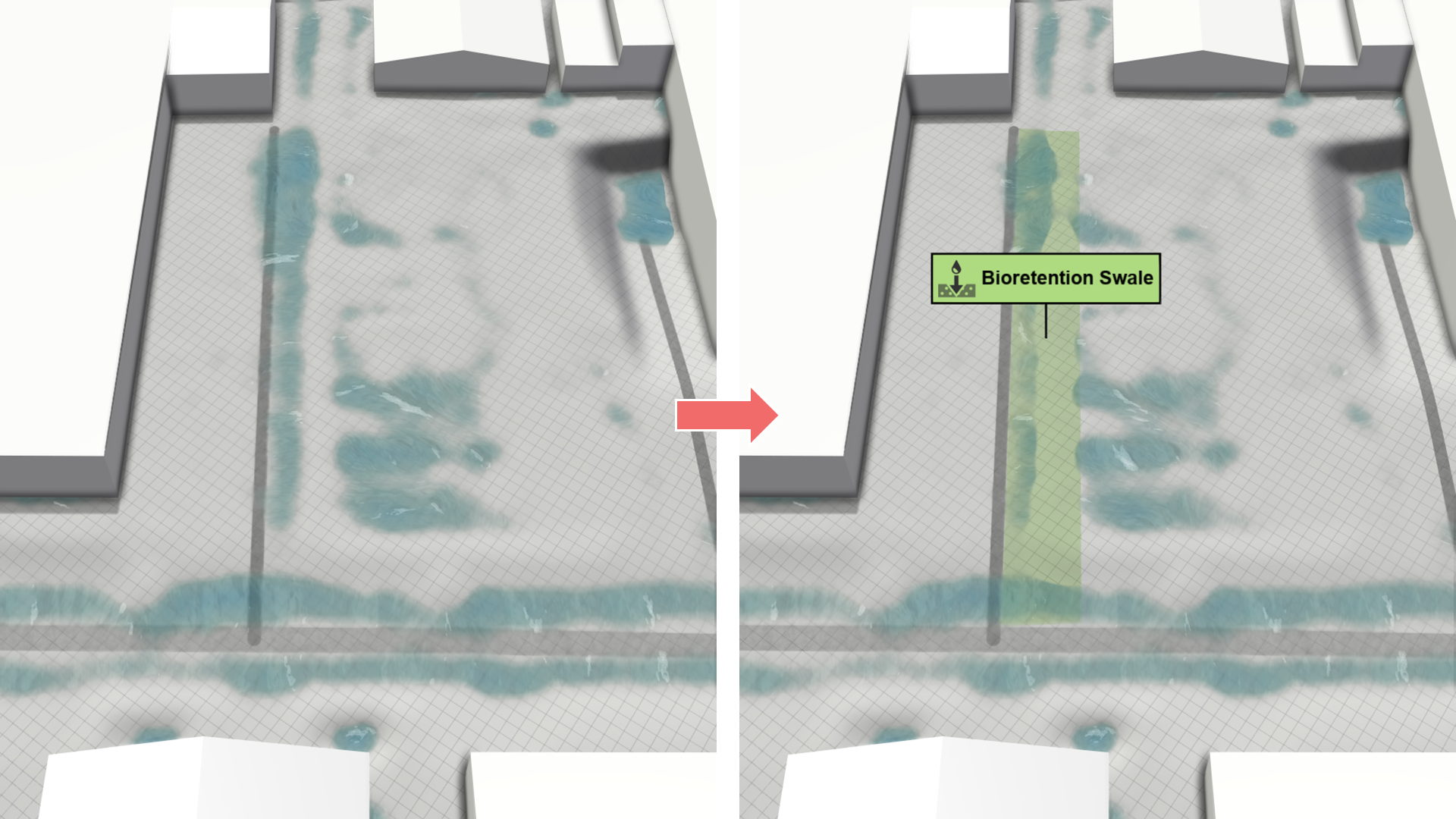

Action Type: Draw Polygon on Terrain (not allowed on scenarios with start time > 0)

Purpose and Effect: This action is part of the nature-based solutions action set. It enables users to create a zone with enhanced infiltration properties, designated storage, and a constant loss rate. Bioretention swales typically feature an engineered soil mix to promote infiltration.

The primary difference from the generic nature-based solution is that the default parameters are configured to reflect the engineered soil mix. These infiltration properties can be adjusted in the Action Settings Panel. For a description of the multi-layer model, see nature-based solutions.

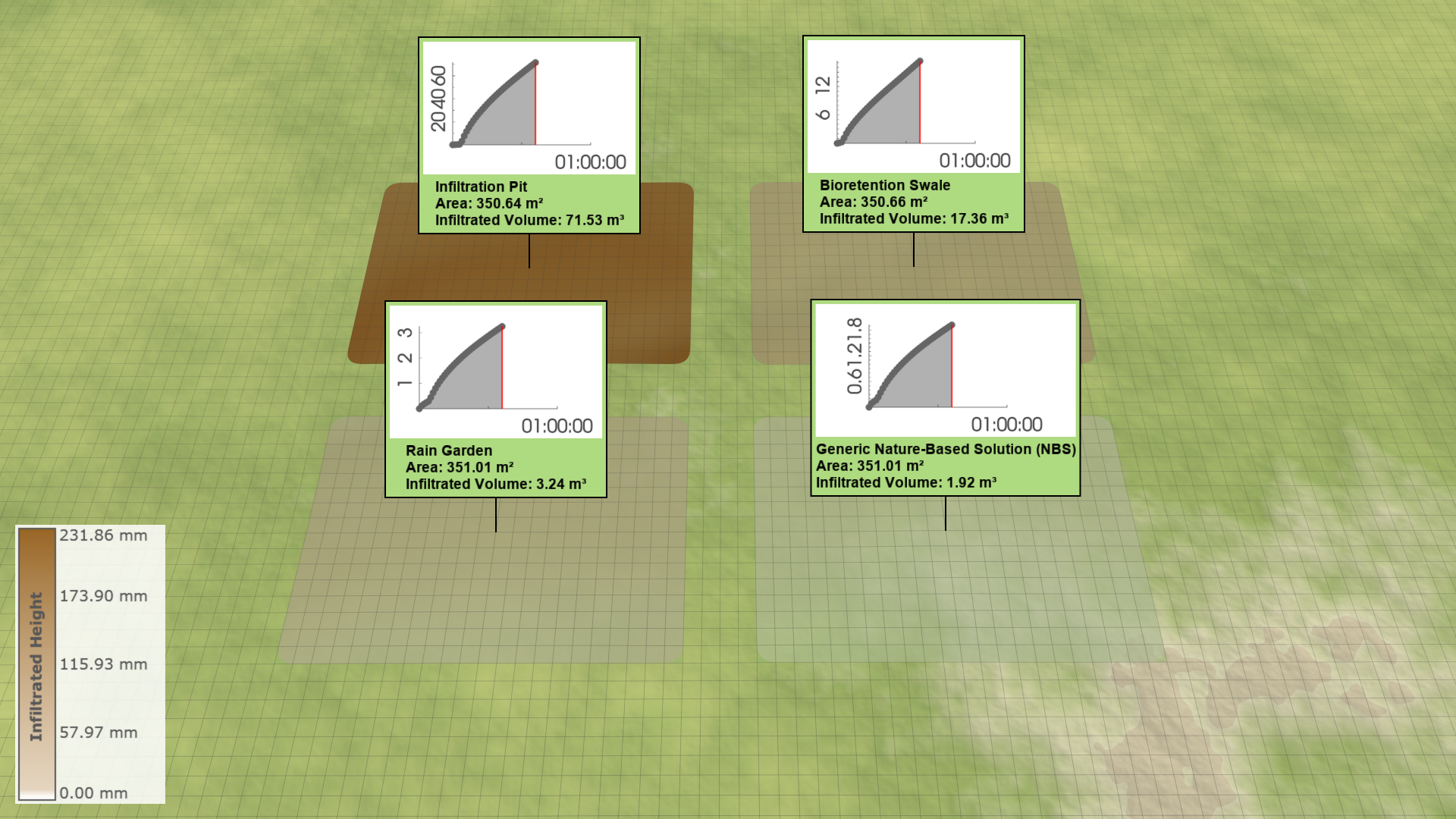

To study the effects of bioretention swales, users can switch between various visualizations in the Visualization Settings Panel, under the Layers: Visualization category. Begin by activating the terrain overlay and then color the terrain based on a soil property. Options include Infiltrated Height, Stored Height, Lost Height, and others.

Additionally, users can also display information as labels through the action tool panel. For a more detailed analysis, label plots are also accessible through the action tool panel. Keep in mind that the \(x\)-axis always shows the entire scenario duration. To complete the plot, simulate until the scenario concludes.
