Creating Personalized Visualizations as in HORA 3D

The HORA website provides 3D visualizations with object-centered flood risk of any point of interest in Austria. This public service is called HORA 3D and is based on scenarify. An address of interest can be entered in the Address Search Field to find its location. Different Actions and Visual Presets can be utilized to create visualizations as presented in HORA 3D.

Vulnerable Parts of a Building

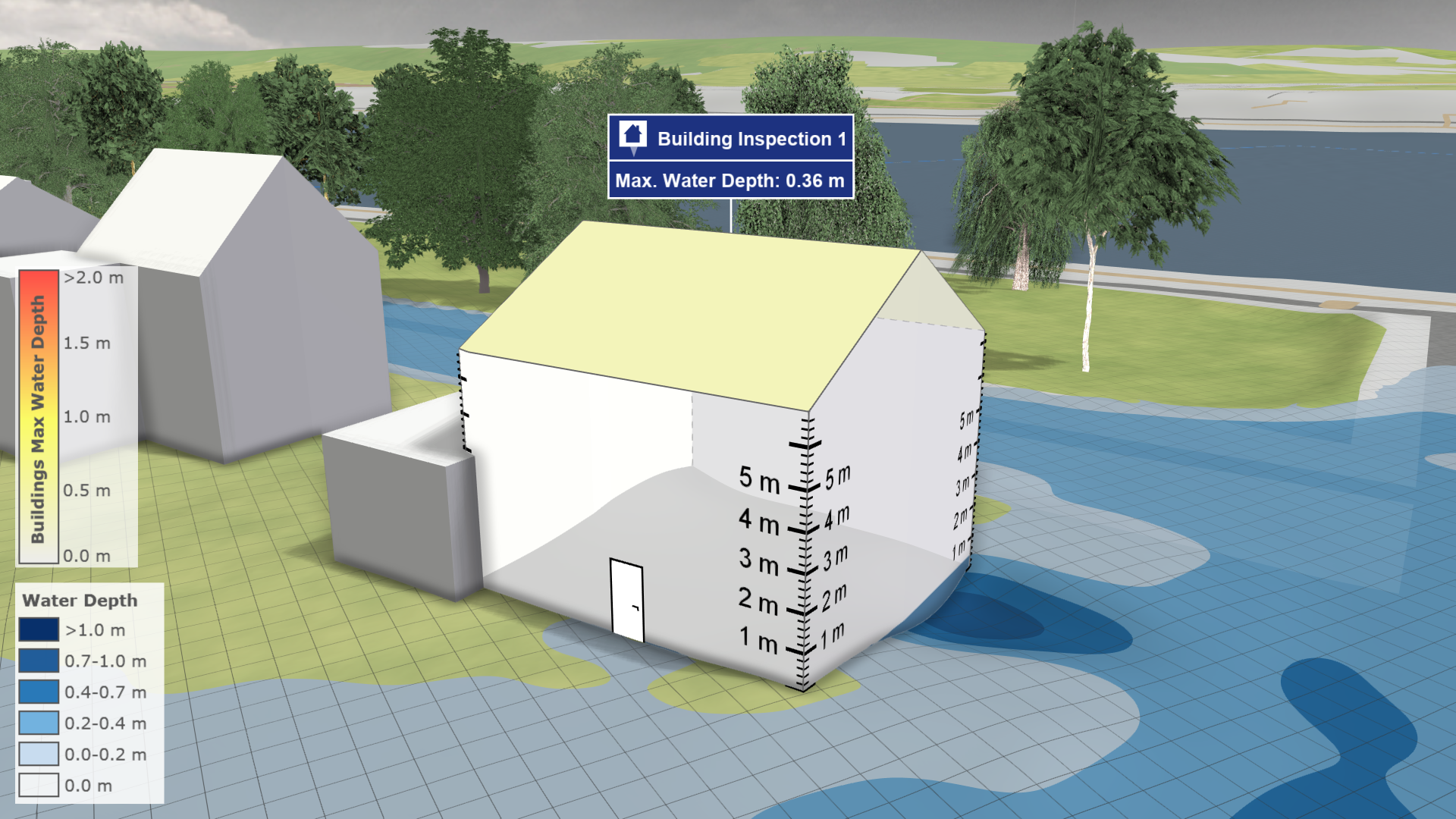

To get information about a building of interest, it can be selected for inspection with the Building Inspection action. In combination with the visual preset Buildings: Wet Facades, a visualization is provided that enhances vulnerable parts of the building.

Hint: Occlusions of the inspected building by other buildings and vegetation can be avoided by setting the building in focus.

Vulnerable Parts of a Premises

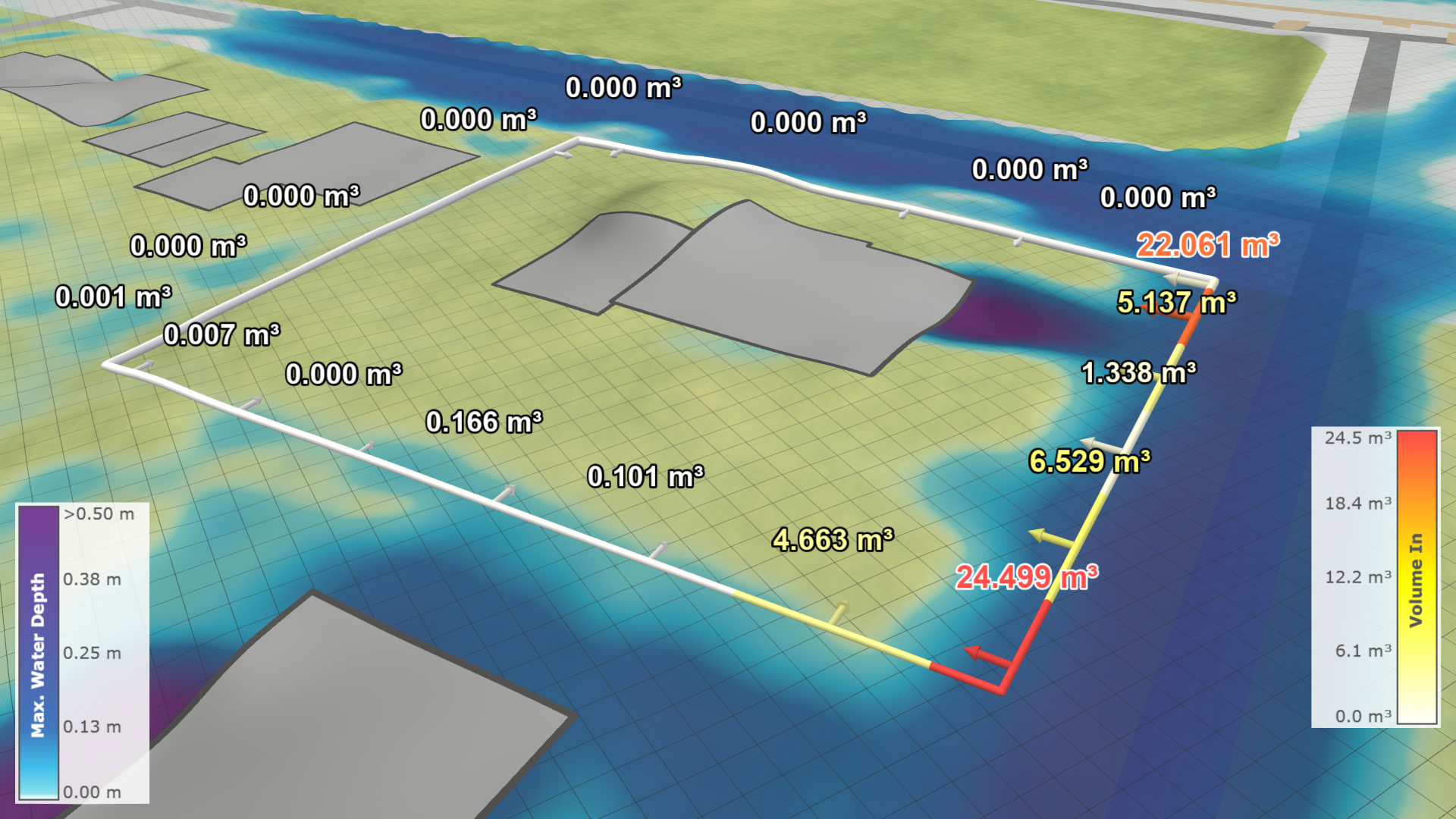

Inflow and outflow information along the border of premises can be extracted with the Profile Inspection action. In combination with the visual preset Surface: Subdivided Profile Discharge, a visualization is provided that enhances the vulnerable parts of the premises.
