Sewer Storage Inspection

Creation Mode: Assign to Sewer Storage (not allowed on scenarios with start time > 0)

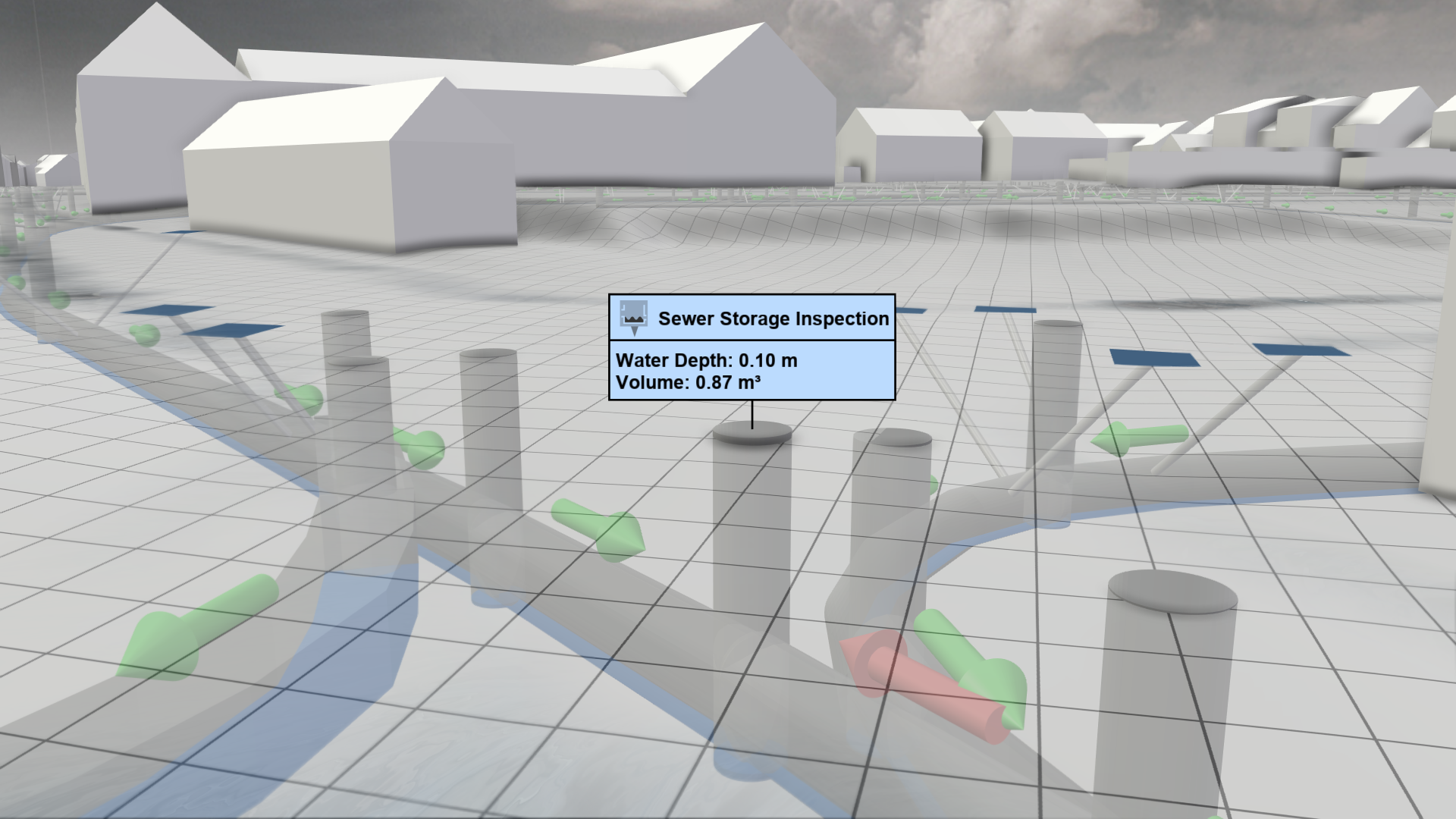

Purpose and Effect: This action allows you to extract simulation properties of a sewer storage. It is a special type of Node that acts as a reservoir or tank, holding water that enters the sewer system. The Action Tool Panel contains the available display options consisting of the current water volume and water depth, which are shown by default.

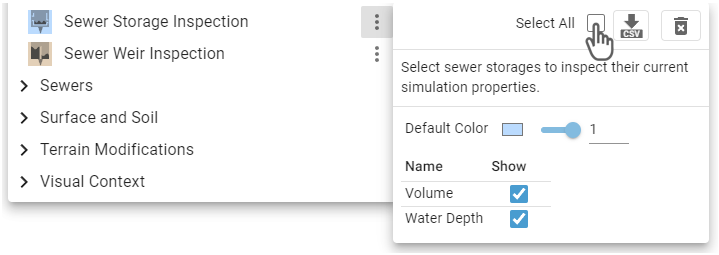

Hint: The Action Tool Panel provides the option to select all storages for inspection, which can be used for finding their locations in a large sewer network.

Display Options

There are different Visual Presets available in the Sewers category for the display of the sewer network.

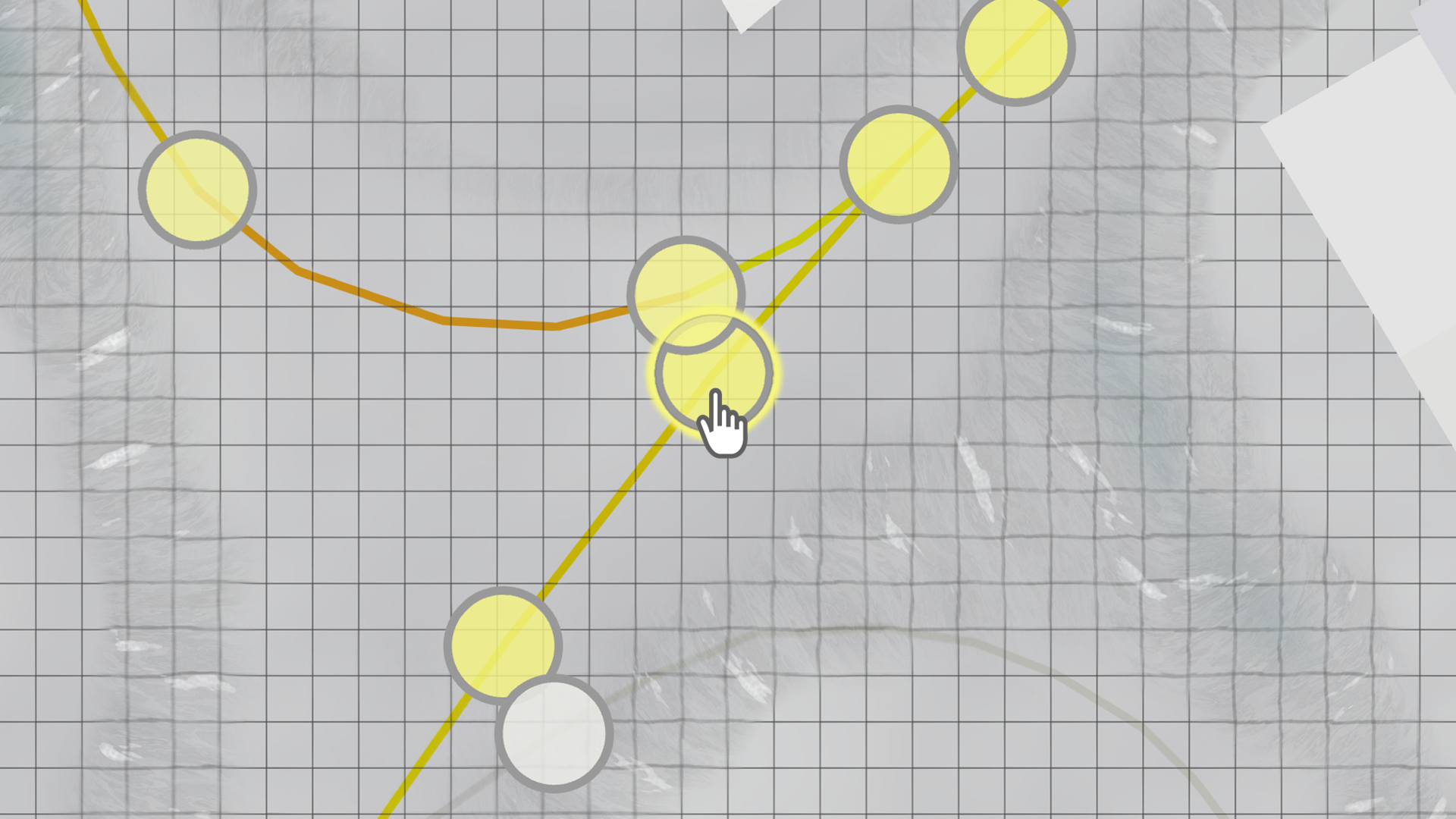

The preset Sewers: Default allows you to select individual sewer storages for inspection. Sewer storages can be inspected by clicking on the corresponding node, which is projected onto the terrain.

The visual preset Sewers: 3D Meshes allows you to navigate under the terrain to get a clear view of the network.
