Sewer Discharge Restrictor Inspection

Creation Mode: Assign to Sewer Discharge Restrictor (not allowed on scenarios with start time > 0)

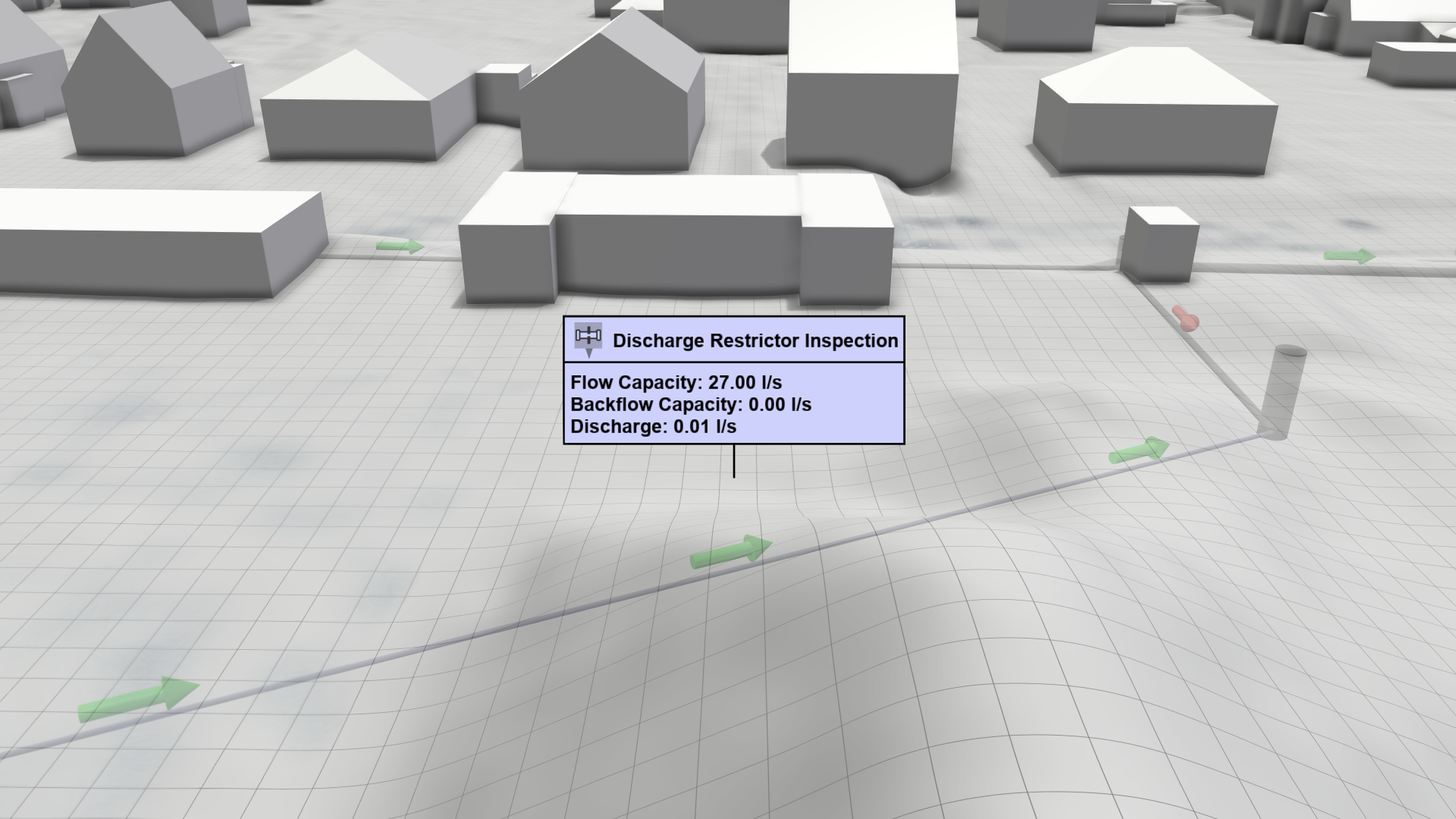

Purpose and Effect: This action allows you to extract simulation properties of a sewer discharge restrictor. A discharge restrictor refers to a control structure used to regulate the flow rate and discharge volumes in the sewer system. The Action Tool Panel contains a table that lists all available display options, such as the flow capacities and the discharge, which are shown by default.

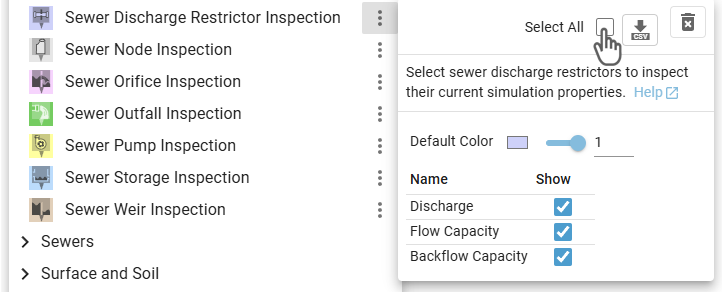

Hint: The Action Tool Panel provides the option to select all discharge restrictors for inspection, which can be used for finding their locations in a large sewer network.

Display Options

There are different Visual Presets available in the Sewers category for the display of the sewer network.

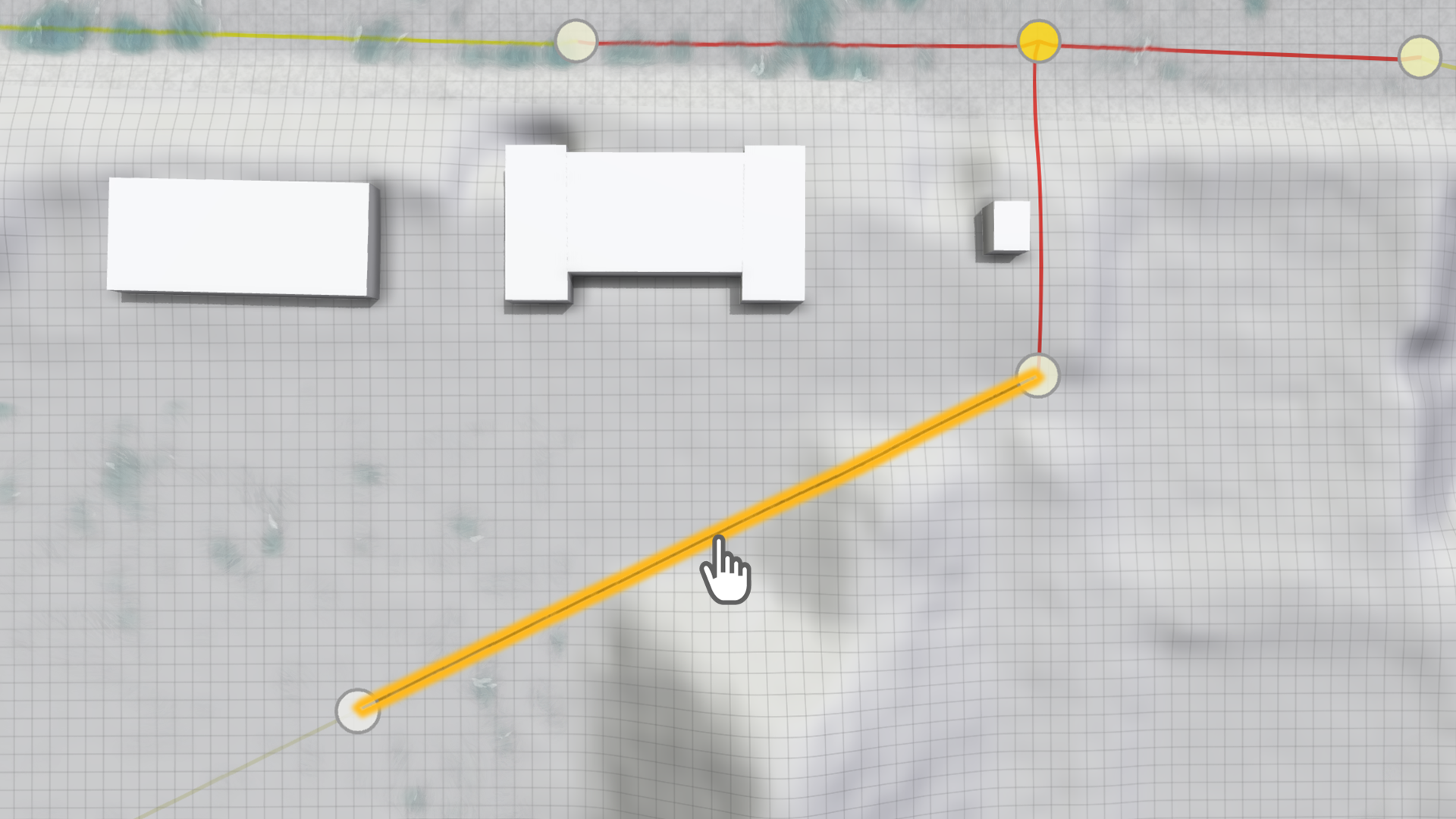

The preset Sewers: Default allows you to select individual discharge restrictors for inspection. Discharge restrictors are applied to Conduits and can be inspected by clicking on the corresponding conduit, which is projected onto the terrain.

The preset Sewers: 3D Meshes allows you to navigate under the terrain to get a clear view of the sewer network.
